Description
C-Rating
1C maximum continuous charge and discharge.

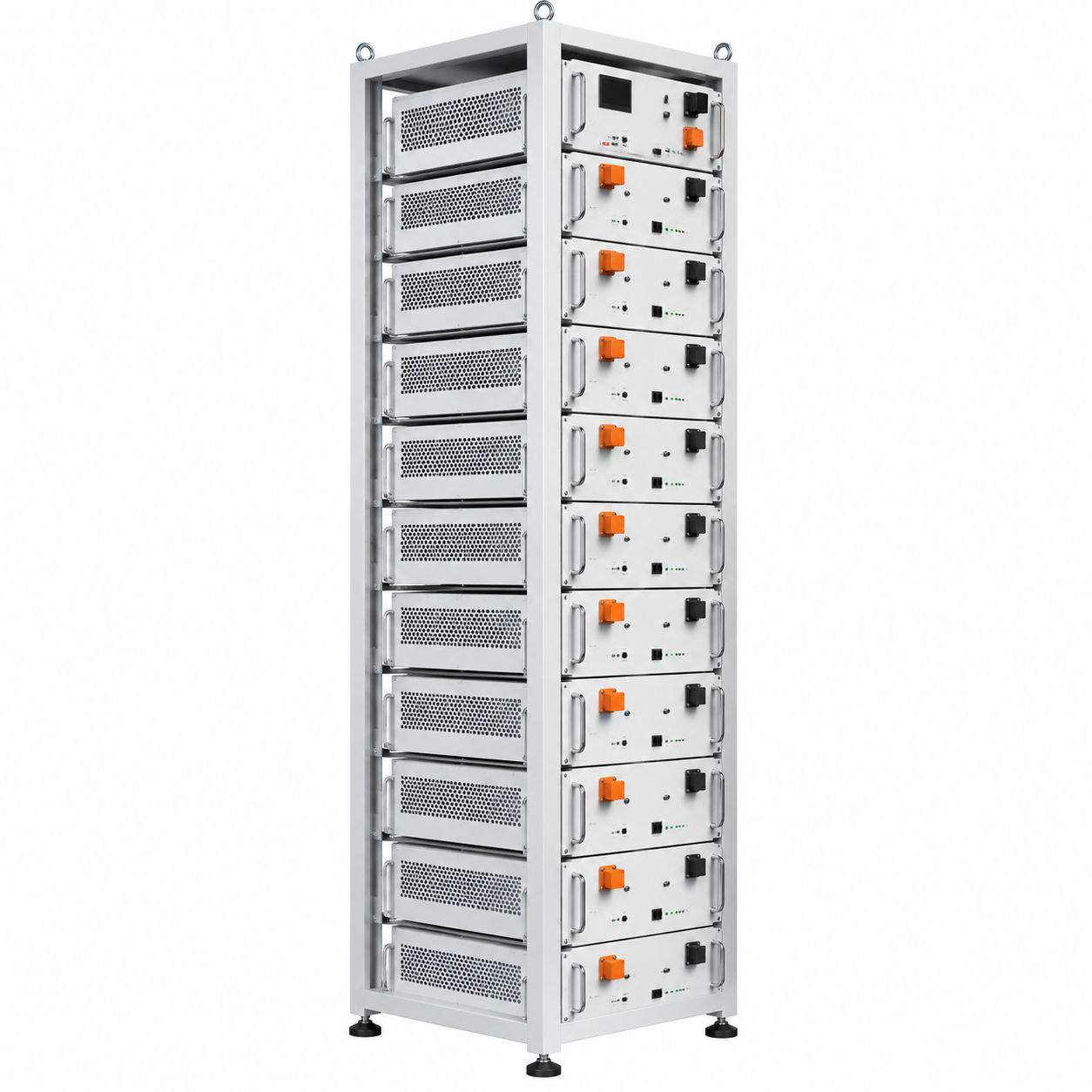

The 61.44kWh high-voltage system uses twelve 5.12kWh, 100Ah modules in series. The series system retains 100Ah capacity at 614.4V. Maximum continuous charge/discharge current is 100A, equivalent to 1C.
Actual current depends on BMS limits, temperature, state of charge and the connected inverter.
Manufacturer specifications: Felicity FLH48100UG1
HV Batteries & 1 x HV Battery Cluster Control
Box) with rack, Max continuous
charge&discharge current: 100A, Cycle life: ≥
6000,@25℃,@DOD80%. Modules
Connection: 1~12 in parallel, 10-year
warranty
HV Battery module: LUX-Y-48100HMG01
Cluster Control Box:
LUX-Y-48100HCG01
Battery:LUX-Y-48100HMCG01
Product Nr : 12PCS FLH48100UMG01+
1PCS FLH48100UCG01+
1PCS BATTERY RACK
