Description

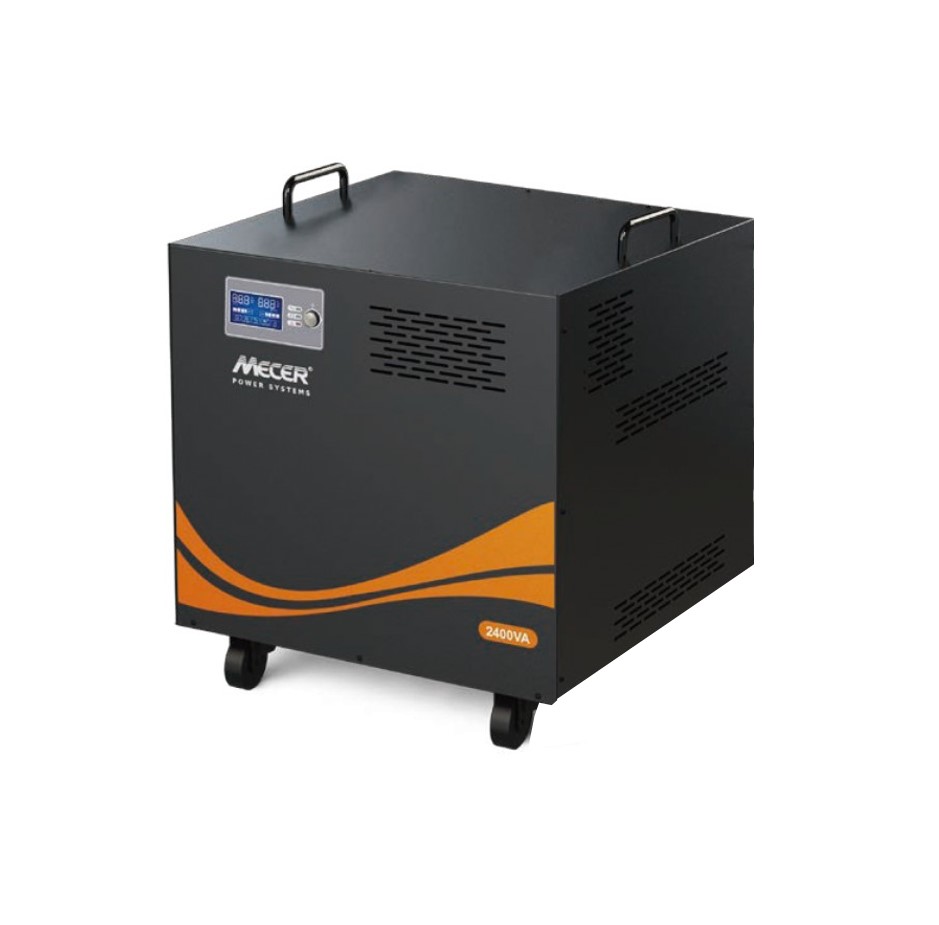

Mecer BBONE-024S
Mercer BBone
Watts: 1400W 2400VA
DC Volts: 24V DC (2 x Battery 100 Amp Optional)
Charger: AC 230V Charger build in for 2 x100 Amp battery
Change Over: Build in change over if utility power fail
Plug point: 3 AC Plug points on unit
Battery Protection: Battery protection build in
Features: – Simulated Sine Wave Inverter – Wide Input Voltage Range – 10 A Or 20 A Standard Ac Charging Current – Lcd Display For Comprehensive Information – Overload, Short Circuit, And Reverse Polarity Protection Specifications: – Capacity – 2400va/ 1440w Input: – Voltage – 230 Vac – Acceptable Voltage Range – 90-280 Vac – Frequency – 50 Hz/60 Hz (Auto Sensing) Output: – Ac Voltage Regulation (Batt. Mode) – 10% Efficiency: (Peak) – 82% – Transfer Time – 20 Ms Typical – Waveform (Batt. Mode) – Simulated Sine Wave Battery: (Not Included) – Battery Type And Numbers – 12 V 100ah X 2 (Not Included) Protection: – Full Protection – Overload, Short Circuit, And Polarity Reserve Protection Physical: – Dimension –420mm x 440mm x 450mm – Operating Environment: – Humidity – 0 To 90% Relative Humidity(Non-Condensing) – Operating Temperature – 0 Cto 40c – Storage Temperature – 15c To 50c What’s in the box 1200VA/720W Inverter mounted into meatl casing Metal Casing for Inverter and Battery 4x wheels attached to metal casing Quick Guide Manual Battery Mounting Brackets Battery Connection Cables AC power Plug
