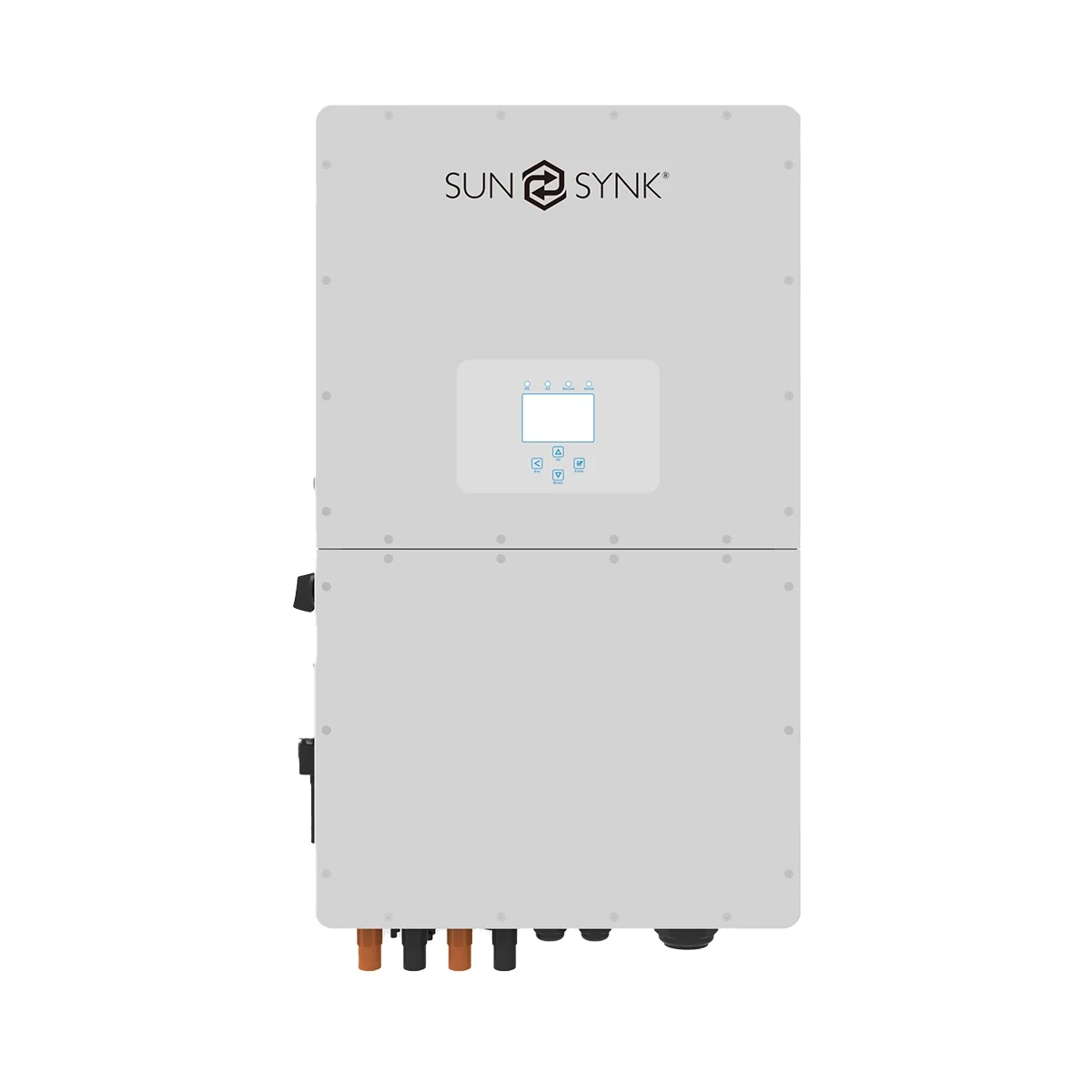

Sunsynk 30kW HV – SUNSYNK-30K-SG01HP3-EU-BM3
| Number of MPPTs | 3 |
|---|---|
| Rated AC output power | 30 kW |
| Maximum AC apparent power | 33 kVA |
| Phase | Three phase |
| AC voltage | 220/380 V or 230/400 V |
| Frequency | 50 / 60 Hz |
| Battery type | High-voltage lithium-ion |
| Battery voltage range | 160–700 V (datasheet v16) |
| Battery inputs | 2 |
| Maximum charge / discharge current | 50 A per battery input |
| Maximum PV input power | 39,000 W |
| Maximum PV voltage | 1,000 V DC |
| PV start-up voltage | 180 V |
| MPPT voltage range | 150–850 V |
| Maximum efficiency | 97.6% |
| Euro efficiency | 97.0% |
| BMS communication | RS485 / RS232 / CAN |
| Surge protection | Type II AC and DC |
| Protection rating | IP65 |
| Cooling | Intelligent cooling |
| Operating temperature | −40°C to +60°C; derating above 45°C |
Sunsynk manufacturer specifications
Product Nr: 30K-SG01HP3
