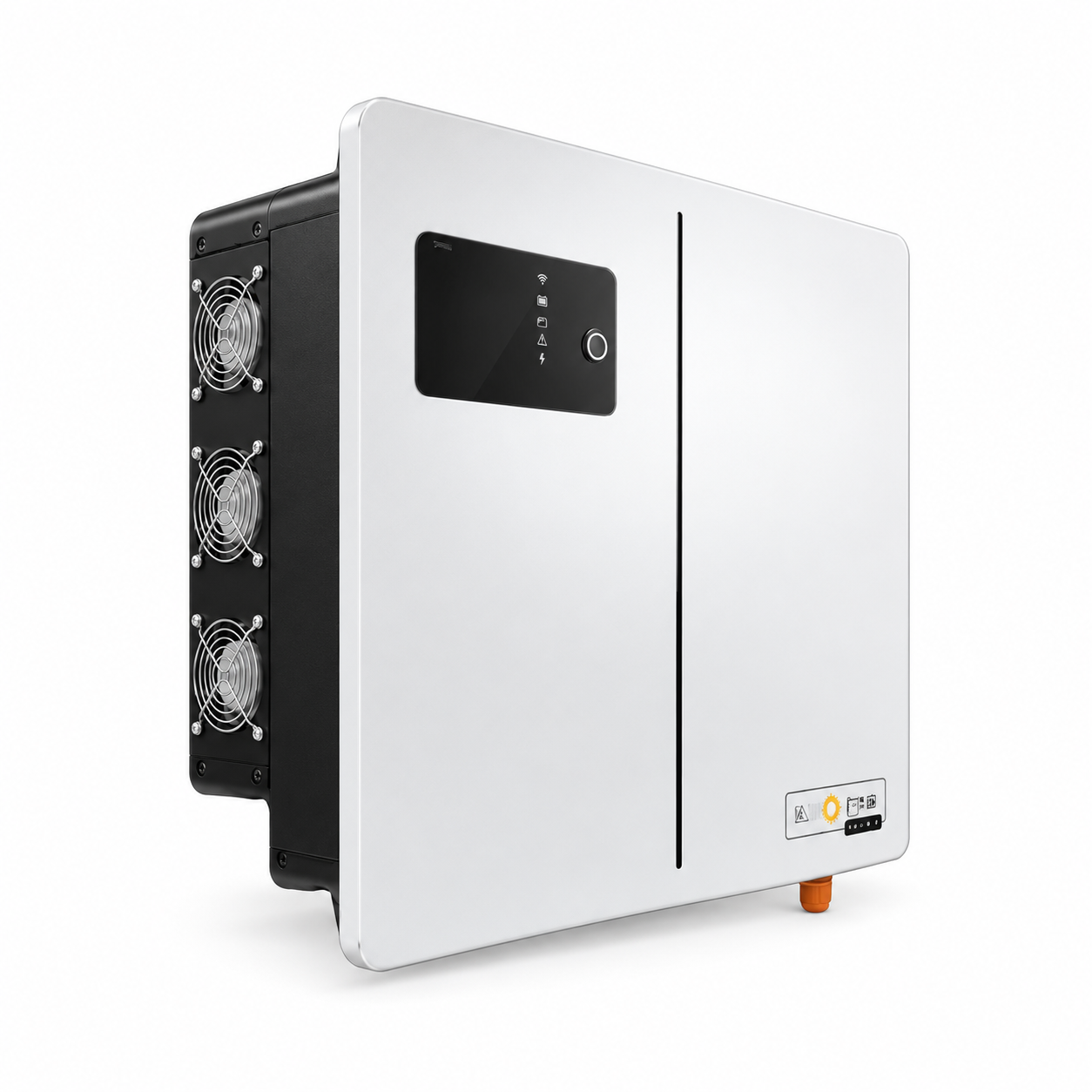

Sunsynk Lynks Pro 8kW – SM8.0kWLLL65
| Number of MPPTs | 2 |
|---|---|
| Rated output power | 8 kW |
| Phase | Single phase |
| Nominal AC voltage | 220 / 230 / 240 V |
| Frequency | 50 / 60 Hz |
| Nominal battery voltage | 48 V DC |
| Battery voltage range | 40–60 V |
| Battery type | LiFePO4 or lead-acid |
| Maximum charge current | 150 A |
| Maximum discharge current | 180 A |
| Maximum PV input power | 12,000 W |
| Maximum PV voltage | 500 V DC |
| MPPT voltage range | 120–450 V |
| PV start-up voltage | 150 V |
| MPPT trackers | 2 |
| PV input current | 28 A per MPPT |
| Maximum efficiency | 97.6% |
| Transfer time | 10 ms |
| Protection rating | IP65 |
| Operating temperature | −20°C to +50°C; derating above 35°C |
Sunsynk manufacturer specifications
Product Nr: LYNKS-PRO-8.0
