Technical Specifications

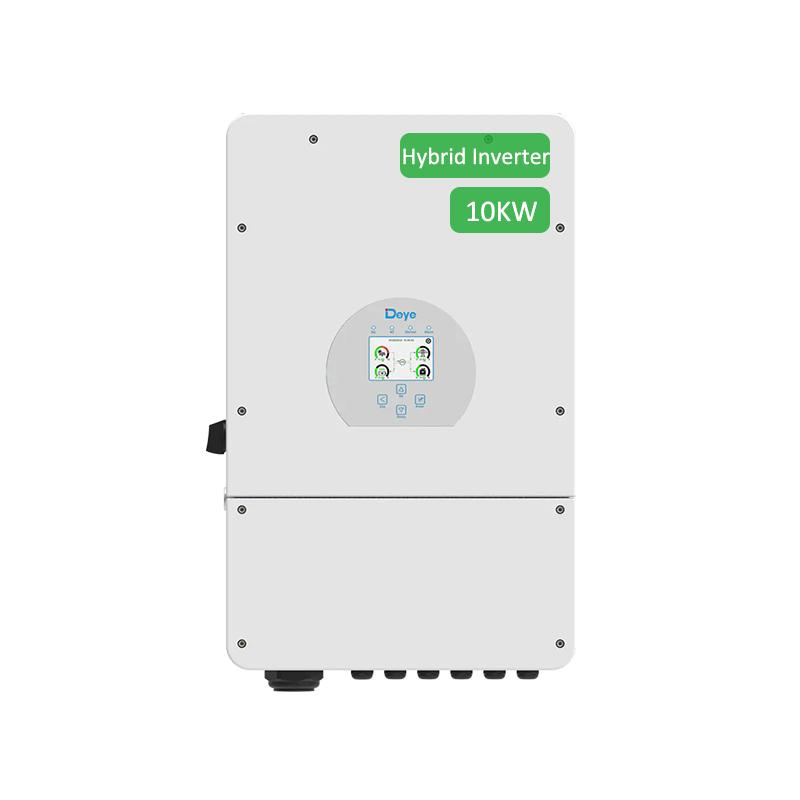

Deye 10K-SG02LP1-EU-AM3
| Number of MPPTs | 3 |
|---|---|
| Rated output | 10kW |
| Phase / type | Single-phase hybrid, low-voltage battery |
| AC voltage | 220/230V; 50/60Hz |
| Battery voltage | 40–60V |
| Battery type | Lead-acid or lithium-ion |
| Maximum charge/discharge current | 220A |
| Maximum PV input power | 16kW |
| Maximum PV access power | 20kW |
| Maximum PV voltage | 500V |
| MPPT voltage range | 150–425V |
| MPPTs / strings | 3 / 2+2+2 |
| PV operating current | 26A + 26A + 26A |
| AC passthrough | 60A |
| Off-grid peak power | Twice rated power for 10 seconds |
Deye manufacturer specifications
Product Nr: 10K-SG02LP1-EU-AM3
